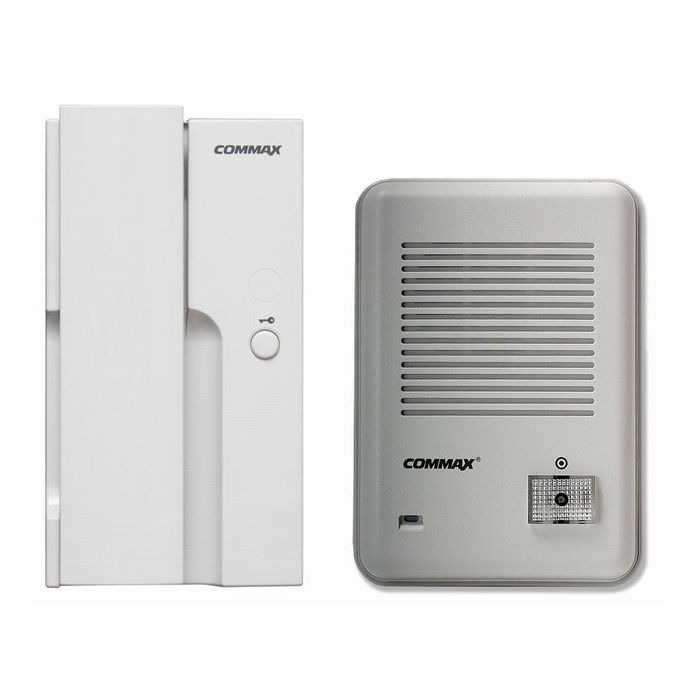

Commax DP-2S

Model DP-2S Power Source 100/110/120/220/230/240V~, 50/60Hz Consumption Power 4.5W(MAX) Distance 100m(Ø0.65mm), 150m(Ø0.8mm) Wiring Call 2-wire, Door Release : 2-wire(Ø1.6mm Copper wire) Dimension(mm) 108(W)°X210(H)°X61.4(D)mm Weight(g) 640g Door unit Specifications Power source 9V Operation temp. -10℃~+40℃ Dimension(mm) 96(W)×140(H)×42(D) Mount type Surface-mounted type Wiring 2 wires
